What is VISION?
VISION is an aviary system that has been developed to enhace animal welfare but also for ease of use of poultry farmers. The system is very intuitive for the birds and provides convenience for the poultry farmer.
What makes VISION different?
As its name suggests, VISION allows the birds in an aviary to be quickly checked. Access to eggs and nesting boxes is from the passageway so that monitoring is quick and easy.
DETAILS
MORE SPACE
more flexibility and easier movement of birds from the start
EASY ACCESS
to the system and its egg channel
BETTER CLEANING AND DISINFECTION
thanks to completely removable nests
EGG COLLECTION BELTS
with bigger capacity
As well as “vision” for the farmer, it also provides “vision” for the hen, because its design makes it easy to find drinking nipples, feed, resting areas and laying nesting boxes in a simple and straightforward way.
The Vision aviary model has four configurations to adapt to the largest number of poultry houses providing maximum capacity for layer housing. It is also available with the option of poultry drying in the system, as well as multiple levels or mezzanines.

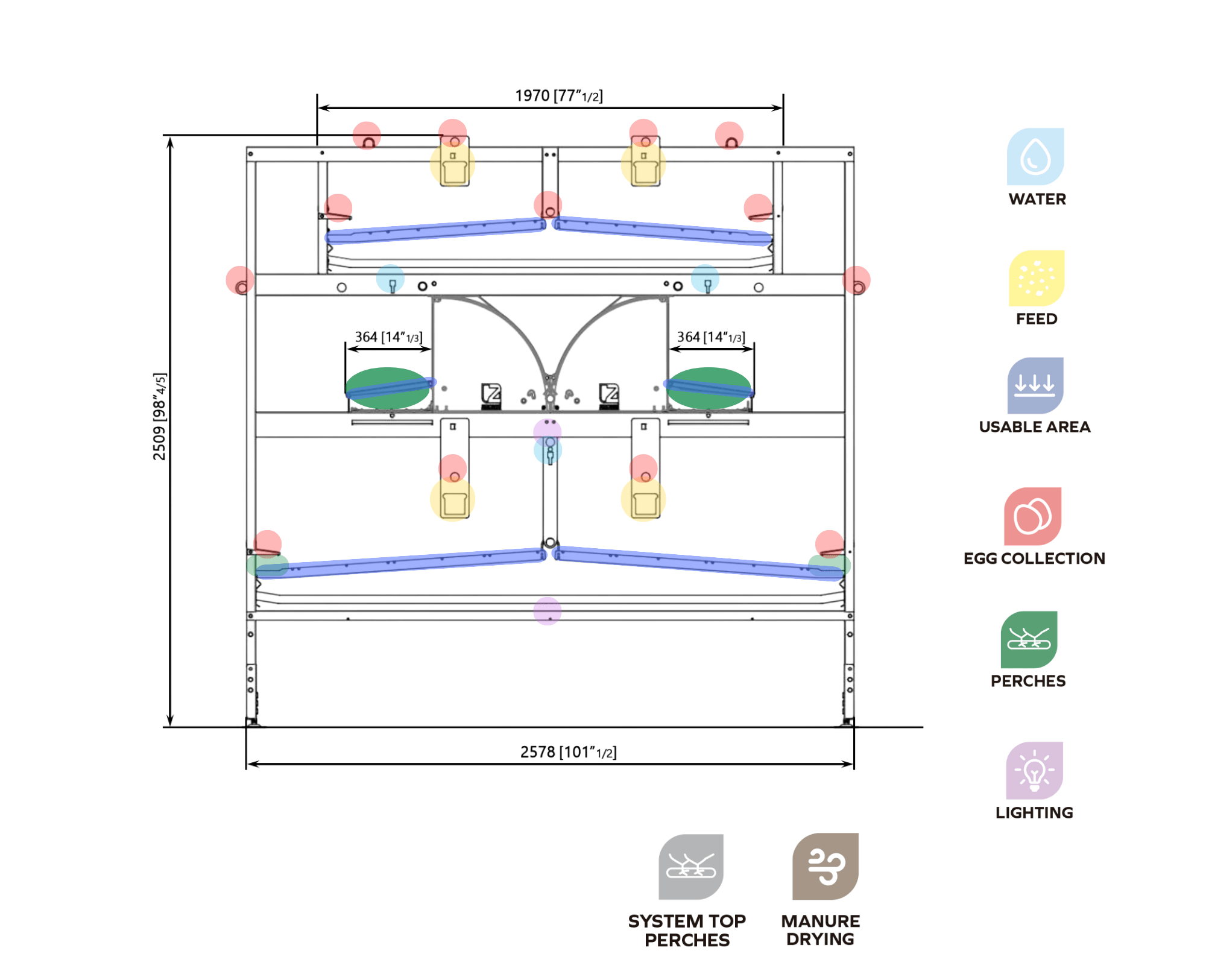

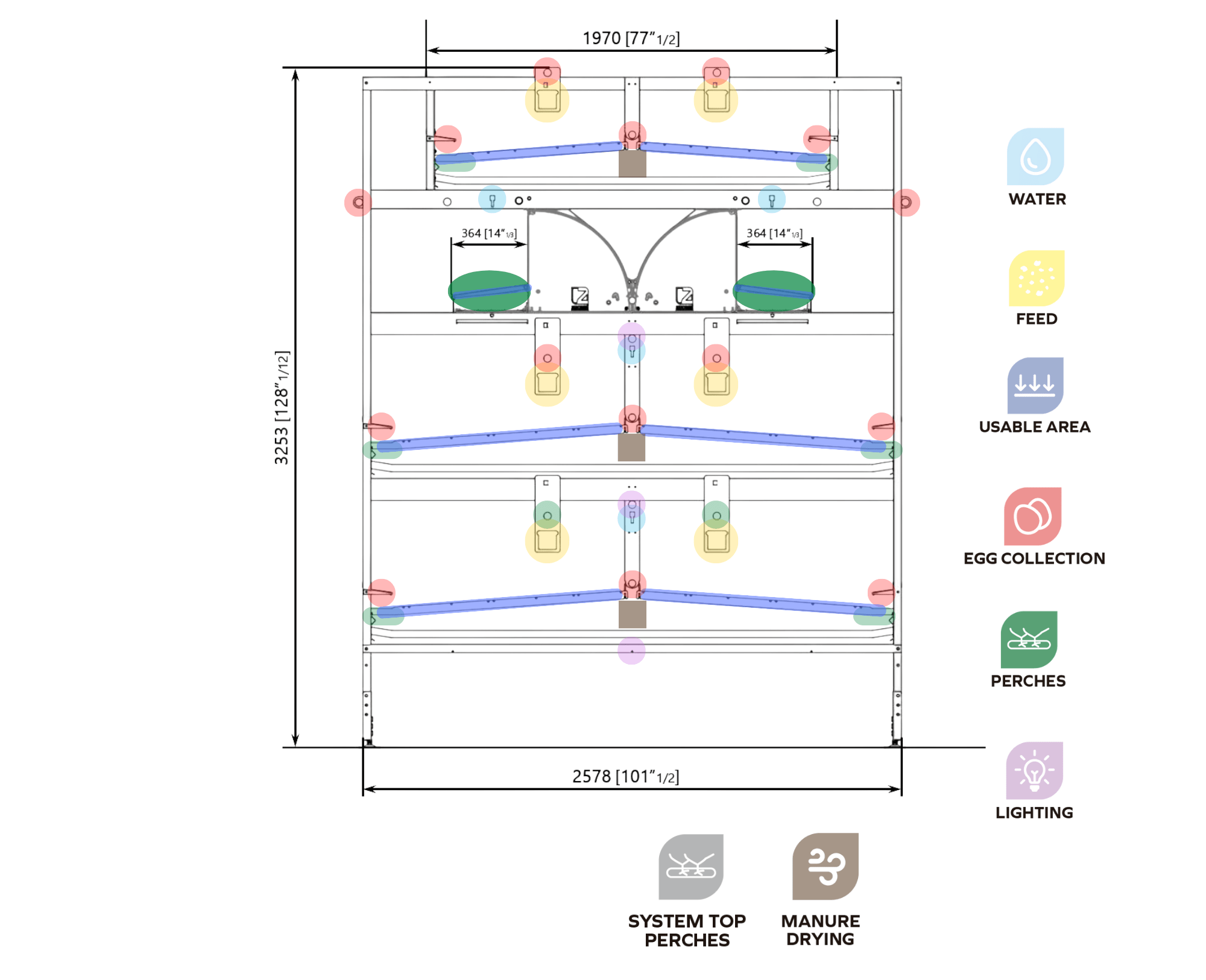

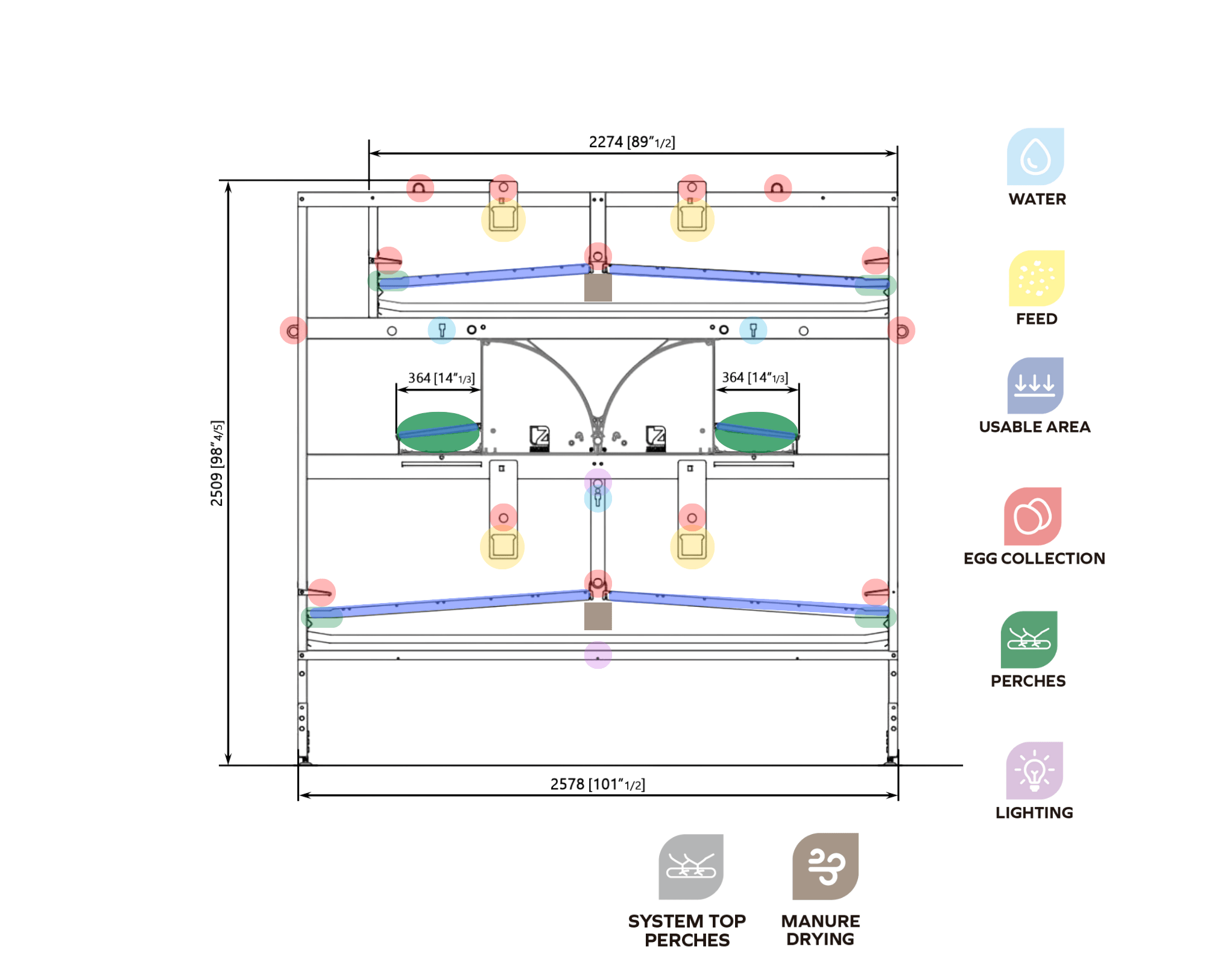

SIZES
For special adaptations please contact us
CAPACITIES
Each color corresponds to the description in the table
| Per linear meter (1 row) |
Per section (2,416 mt) |
||
|---|---|---|---|
| USEFUL SURFACE | 5.27 m2 | 12.73 m2 | |
| PERCHES | 15 m | 36.24 m | |
| FEEDERS | 8 m | 19.33 m | |
| NIPPLES | 10.76 | 26 | |
| NEST SURFACE | 0.96 m2 | 2.31 m2 |
